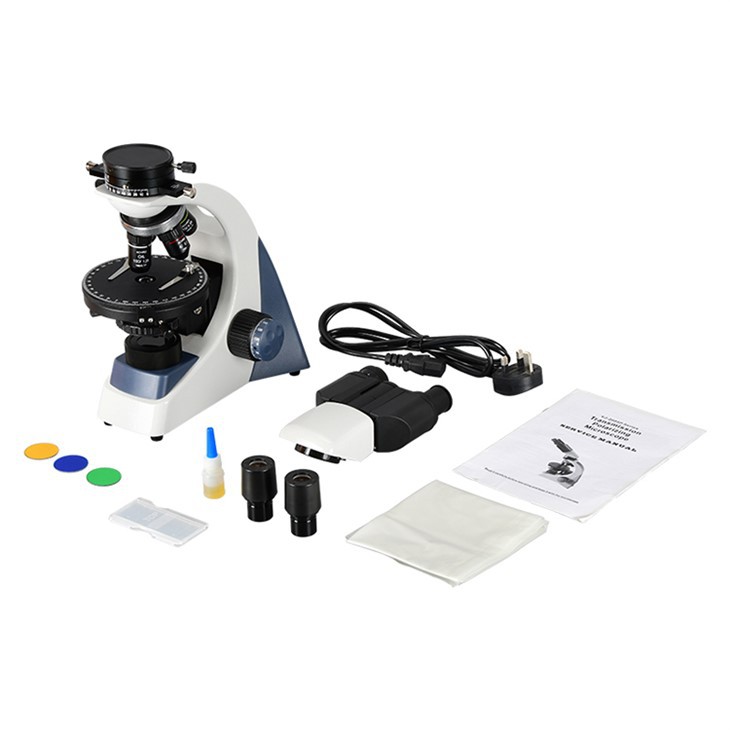

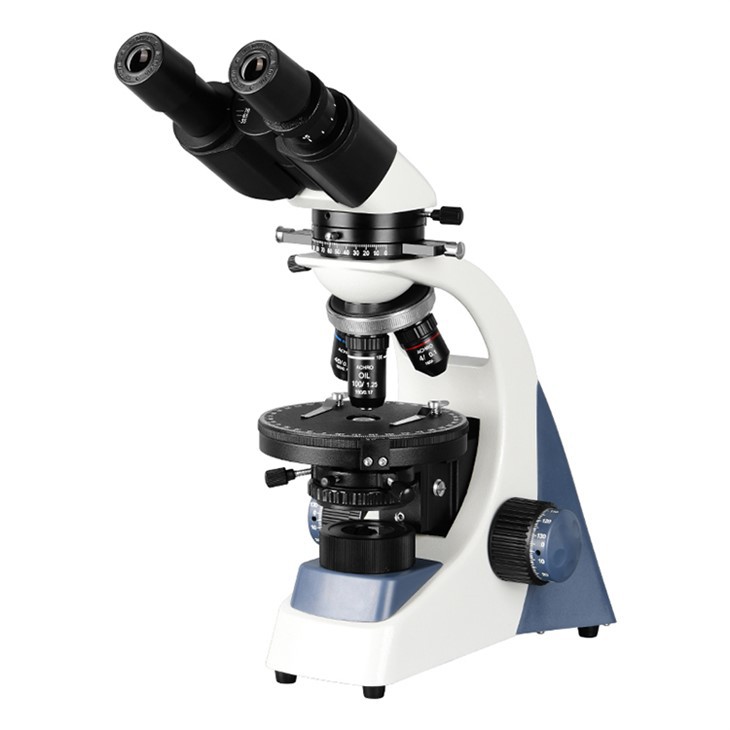

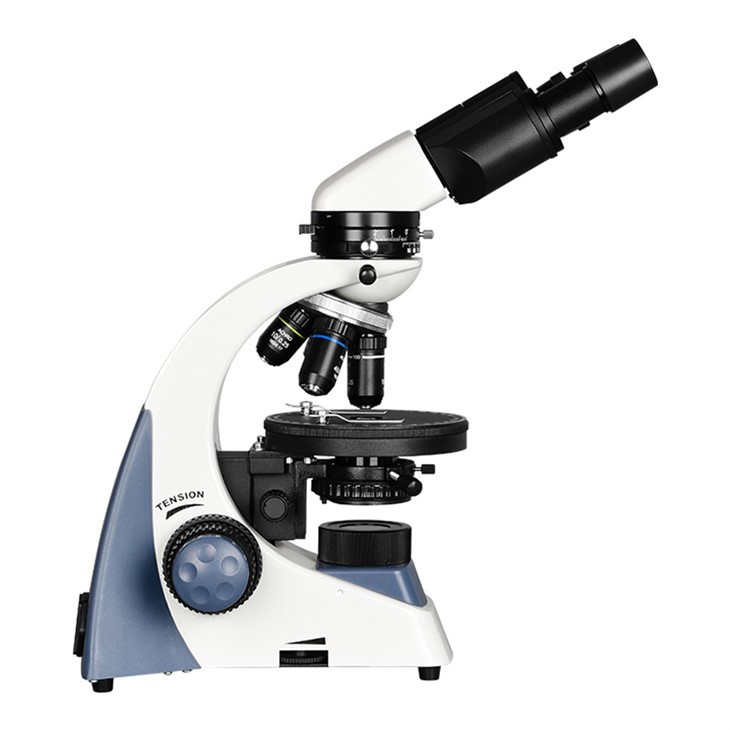

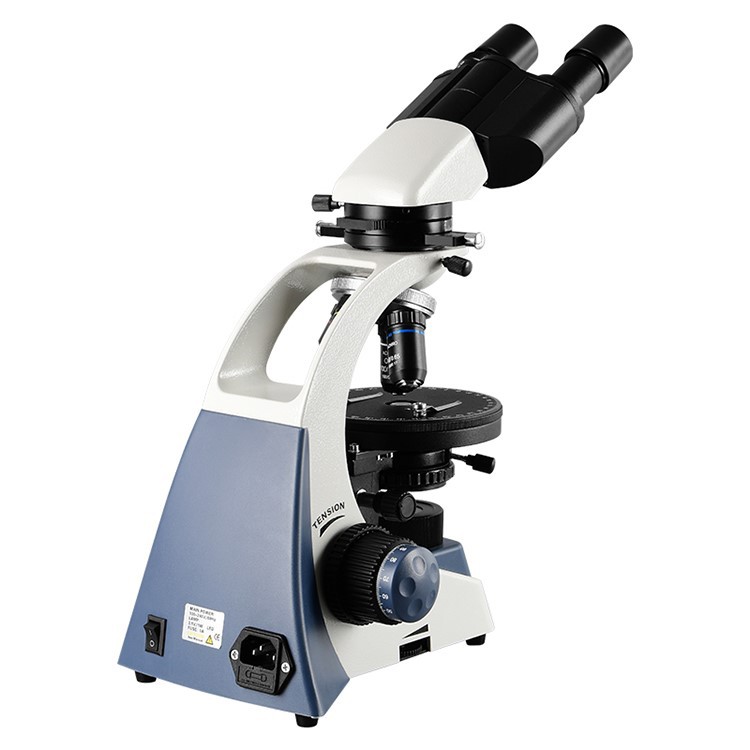

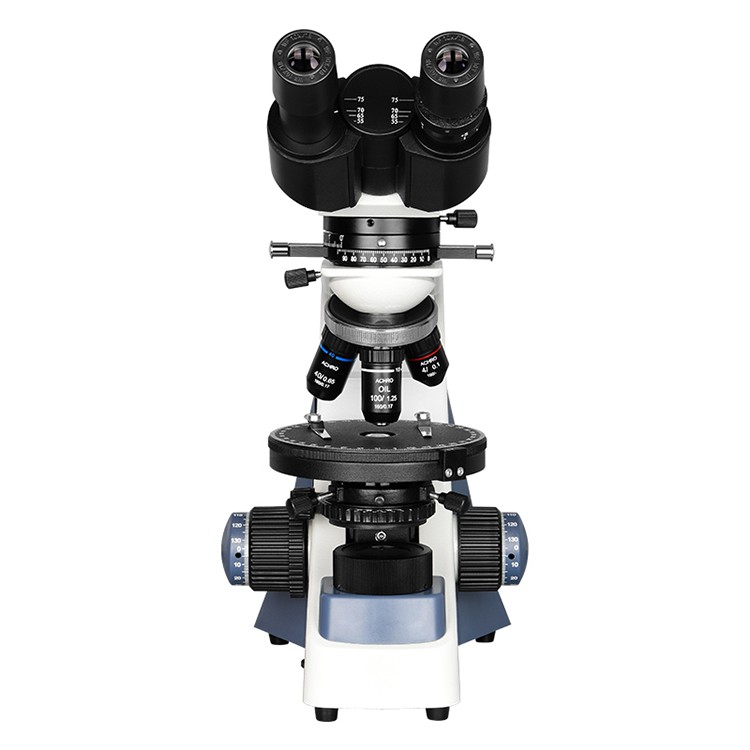

Geological Polarizing Microscope
Geological Polarizing Microscope
Geological Polarizing Microscope
Geological Polarizing Microscope
Geological Polarizing Microscope
Geological Polarizing Microscope

Geological Polarizing Microscope

Polarizing microscope yog siv dav hauv cov ntxhia, polymer, fiber ntau, iav, semiconductor, chemistry thiab lwm yam kev lag luam, kev siv lub teeb polarization yam ntxwv ntawm birefringent tshuaj rau kev tshawb fawb thiab kev txheeb xyuas cov cuab yeej tseem ceeb, rau feem coob ntawm cov neeg siv los ua ib qho kev soj ntsuam polarizing, orthogonal polarizing kev soj ntsuam, cone lub teeb tsom thiab lwm yam.

Khoom Taw qhia

Specification

geological polarizing microscope

45mm DIN Achromatic Lub Hom Phiaj: 4X,10X,40X(S), 100X(S, Roj)
Wide Field Plane-Scope Eyepiece: WF10X,WF16X(yeem);
Tag nrho Magnification: 40X-1600X
Articulated Dawb Binocular Lub Taub Hau, Interpupillary nrug: 55-75mm; 30º Inclined, 360º Rotatable
Revolving Round Theem: Ø160mm;
360ºRotatable thiab kawm tiav 1ºIncrements, Qhov siab tshaj plaws 6';
Ø 2-Ø30mm Iris Diaphragm Thiab Ø32 Lim; ABBE Condenser: NA1.25;
Coaxial Coarse Thiab Fine Focusing Adjustable; Mechanism: 14mm, Precision: 0.01mm;
Rotatable Analyzer nrog Kawm Tiav 0º-90º, zawv zawg tawm ntawm Optical Path;
Optical Compensator: λSlip (thawj chav kawm liab), 1/4λ plam;
Polarize: Ntawm lub teeb lub teeb, 360º Rotatable;
Built-in Adjustable Brightness LED Teeb 1W.
